Steering Angle/Torque Sensor
General:
AMEC has designed its Steering Angle/Torque Sensor for extreme long-life, low-cost and high accuracy, utilizing advanced thick-film print technology. The sensor provides torque, steering angle (360 degrees) and the steering wheel turns sensing function.
Technical Parameters:
| Items | 107-R |
| Sensor Type | Contact |
| Angular Position | |
| • Range | - 720°to +720° |
| • Accuracy | ±2% |
| • Rotational life | 1,000,000 cycle |
| • Dither life | 12,000,000 cycle |
| Torque Angle Position | |
| • Torque angle range | -8°to +8° |
| • Accuracy | ±3% |
| • Rotational life | 1,000,000 cycle |
| • Dither life | 10,000,000 cycle |
| Temperature Resistance | |
| • Operation | –40 to 100℃ |
| • Storage | –40 to 110℃ |

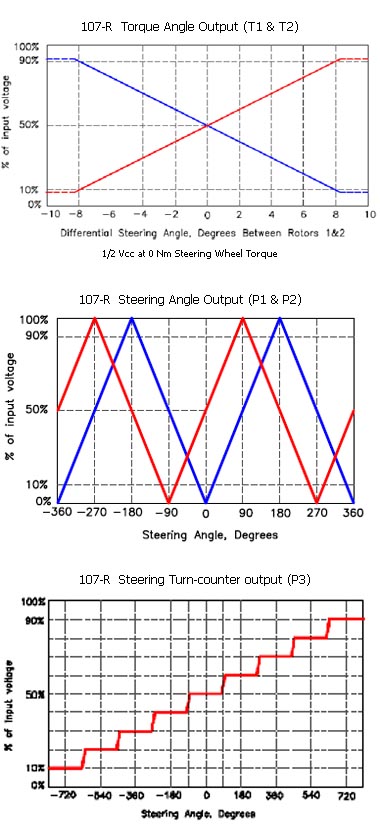

Characteristic Curve:

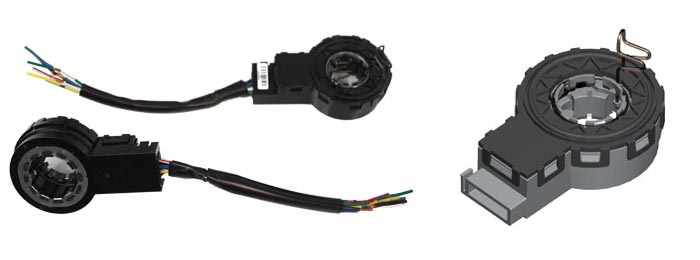

Product Image:
