Three-phase Brushless DC Motor
General:
Three-phase brushless motor is an advanced motor design, with high-precision control, high efficiency, extremely long life, and temperature compensation, etc., to provide efficient real-time output of the driving forces.
Technical Parameters:
| Items | Performance | Items | Performance |
| Operating Voltage | 9~16V, nominal 13.5V | Rated Torque | 3.25Nm |
| Operating Temp. | –40 to +105℃ | Rated Speed | 1,300 RPM |
| Storage Temp. | –40 to +125℃ | Continuous Power Output | 450W |
| Rated Current | 45A | Expected life | 10 years / 150,000 miles |

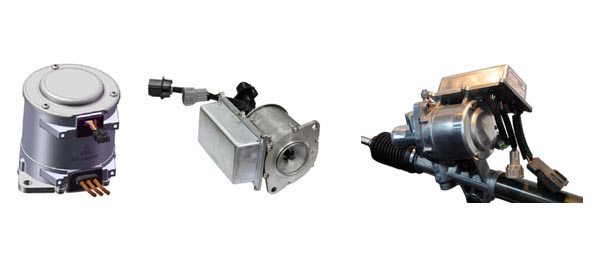

Product Image:
