Auto Leveling Sensor


AMEC’s leveling sensor uses hall-effect technology, is a non-contact type of advanced design, providing longer life, higher accuracy, and a solid mechanical body. This is not only used for Adapted Front Lighting Systems (AFS), but can also be applied to related body control systems, such as, vehicle stability systems and active suspension systems.


Technical Parameters:

Items Sepcifications
Operating temperature range - 40°C to + 125°C
Storage temperature range -55°C to + 150°C
Operating voltage range 9~16V
Angular Resolution (function of frequency) 0.05 degree
Relative linearity < ±1%
Nominal Duty Range (90 deg) 5%~95%
Mechanical Movement 360 degree
Output Range 90 degree
Life cycle 5,000,000 cycles min

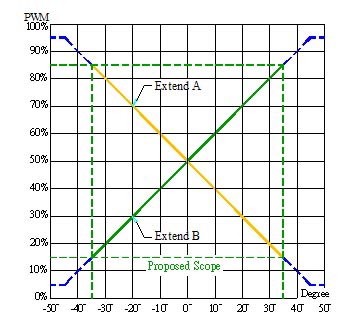

Characteristic Curve:

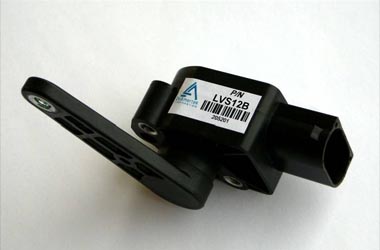

Product Image:
