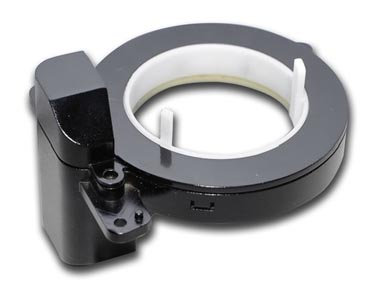

长杰科技的转向角度传感器具有较长的使用寿命以及高精度的测量,能提供360度的绝对位置侦测以及圈数侦测,不仅用于适路性照明系统(AFS),另外可用在任一需要转向信号的系统上,如车身稳定系统等。
Items | Performance |
Angular Position: | |
• Range | -900° to 900° (Max. -1080° to +1080°) |
• Resolution | 0.25° |
• Accuracy | ± 1 % duty |
Power Supply Voltage | |
• Rated voltage | DC 12V |
• Range of operation voltage | DC 8V to 16V |
Temperature Resistance | |
• Operation | –40 to 85℃ |
• Storage | –40 to 95℃ |
Life Cycle | 1,000,000 cycle (min) |
