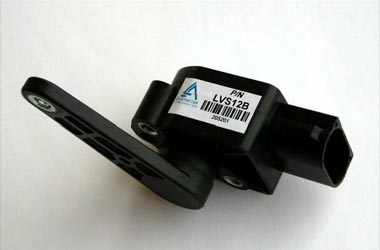

长杰科技的车身水平传感器采用霍尔效应技术,是属于非接触式的先进设计,提供更长寿命、高精度、扎实的机构强度,不仅用于适路性照明系统(AFS),还可应用于车身控制相关的系统,如车身稳定系统、主动式悬吊系统等。
Items | Sepcifications |
Operating temperature range | - 40°C to + 125°C |
Storage temperature range | -55°C to + 150°C |
Operating voltage range | 9~16V |
Angular Resolution (function of frequency) | 0.05 degree |
Relative linearity | < ±1% |

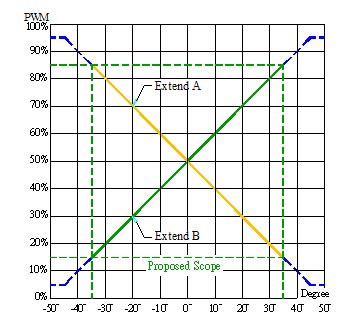

Nominal Duty Range (90 deg) | 5%~95% |
Mechanical Movement | 360 degree |
Output Range | 90 degree |
Life cycle | 5,000,000 cycles min |
